One Bay 19" Outdoor Telecom Equipment Cabinet Galvanized Steel With Heat Exchanger

  • 1
  • 2
  • 3

Brand Name : ESTEL

Model Number : 131090918050001

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 5,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

External size : W× D×H 900 ×900 ×1750mm

Cabinet Lock : Anti-theft three point lock(support padlock)

Cable Inlets : From cabinet bottom

Mounting type : Floor mount

Cooling system : Heat exchanger

Protection Level : IP55

Contact Now

One Bay 19" Galvanized Steel Outdoor Telecom Equipment Cabinet With Heat Exchanger

1. Cabinet Instructions

  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • Cabinet cooling: heat exchanger.
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
  • All the cables used in the cabinet are made from flame retardant materials.

2. Cabinet Parameters

Item

 Type Technical Parameter
Structure Dimension External Dimension: H×W×D 1750×900×900mm
Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Assembled or welded
Ingress Protection IP55
Temperature Control Cooling Heat exchanger
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2

3. Cabinet Inlets

Feeder cable and other external cables all use bottom wiring method.

One Bay 19" Outdoor Telecom Equipment Cabinet Galvanized Steel With Heat Exchanger

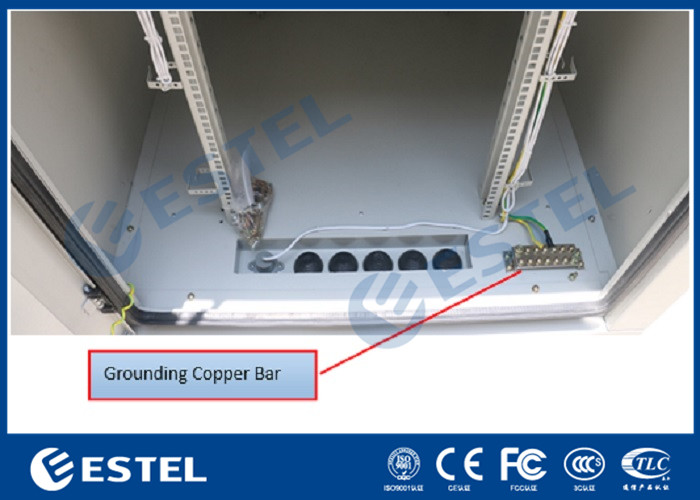

4.Grounding Protection

(1) The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

(2) The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.

(3) Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

One Bay 19" Outdoor Telecom Equipment Cabinet Galvanized Steel With Heat Exchanger

5.Cabinet Package

One Bay 19" Outdoor Telecom Equipment Cabinet Galvanized Steel With Heat Exchanger

6.Quality Control Introduction

Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process. The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification.

Our quality inspection team, is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.
