Stainless Steel Two Bay Base Station Cabinet DIN Rail Power Distribution Enclosure

Brand Name : ESTEL

Model Number : ET12040135

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : 358-2143 usd

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 5,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

Material : Stainless steel, single wall, 1.5mm thickness

External size : 1200×400×1350mm(W×D×H)

Cabinet Lock : Anti-theft three point lock(support padlock)

Door : Two front doors, hidden zinc alloy hinge

Mounting type : Floor mounting type

Color : Grey, RAL7035

Device installation method : One back plate and DIN rails

Protection Level : IP65

Contact Now

Stainless Steel Two Bay Base Station Cabinet DIN Rail Power Distribution Enclosure

High Anticorrosion Stainless Steel Two Bay Base Station Cabinet DIN Rail Power Distribution Enclosure Outdoor Cabinet

Application

● Telecommunication.
● Base station.
● Wireless/Broadband.
● Solar based installations.
● Wireless cell sites&switches.
● Transmission terminals.
● Data and control.
● Transporation.
● Traffic.


Outdoor cabinet feature

● Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
● Professional outdoor anti- corrosion polyester powder coating, strong weather resistance
● Stainless steel have perfect anti corrosion, anti sand and anti ultraviolet
● The surface of the cabinet has strong adhesion and anti-aging coating




Technical Parameters

Configuration Item Technical Parameter
Cabinet Body Model ET12040135
Size External Size: 1200×400×1350mm(W×D×H)
Component The whole cabinet is composed of three parts: top cover, cabinet body and cabinet base. The installation method is floor mounted.
Material Stainless steel, single wall, 1.5mm thickness
Structure
  • Single wall
  • Two front doors, hidden zinc alloy hinge
  • Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device
  • Door stopper is installed on the inside of the cabinet door
  • Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof
  • One compartment: including one back plate and DIN rails
  • Including grounding copper bar
  • Cable entry at the bottom of cabinet
Surface Treatment Powder coating
Color Grey, RAL7035
Ingress Protection IP65
Working Temperature -40°C～+75°C


Dimension Drawing

Stainless Steel Two Bay Base Station Cabinet DIN Rail Power Distribution Enclosure


Product Details

Stainless Steel Two Bay Base Station Cabinet DIN Rail Power Distribution Enclosure

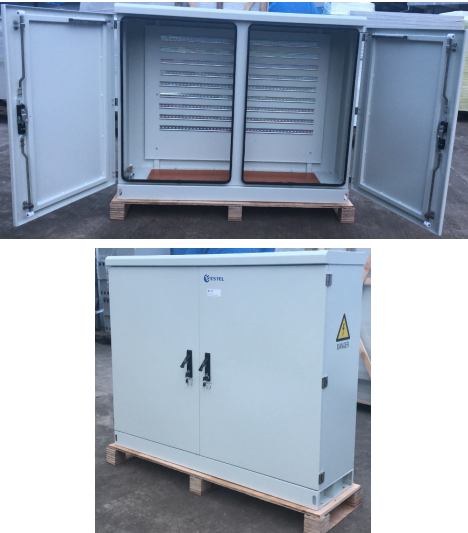

Outdoor cabinet picture

Stainless Steel Two Bay Base Station Cabinet DIN Rail Power Distribution Enclosure
